NYCDDC – HWX Jerome Avenue & Grand Concourse, HED585, HED583, Borough of Bronx, NY – SERCWSRV2

NYCDDC – HWX Jerome Avenue & Grand Concourse, HED585, HED583, Borough of Bronx, NY – SERCWSRV2

JED Engineering & Land Surveying provided Control Survey, Topographic, Sewer Investigation, Highway Profiles, and Utility Plan and Profiles, performed in accordance with the specifications noted in Item 4A: For Highway and/or Sewer and Water Main Projects (DOT Spec) as depicted in Exhibit ‘D’: The City Of New York Department of Design and Construction, Division of Program Management, Technical Requirements for Land Surveying Services for Capital Projects.

The following tasks were performed:

Control Survey: Vertical Controls were set in the Borough of the Bronx datum and later converted to NAVD 88. Horizontal controls were established in NAD 83.

Sewer Investigation: Obtain inverts, pipe sixes, flow direction and material.

Topographic Survey:

Highway and Sewer Profiles

Utility Survey

Right of Way Survey: Boundary lines researched and plotted.

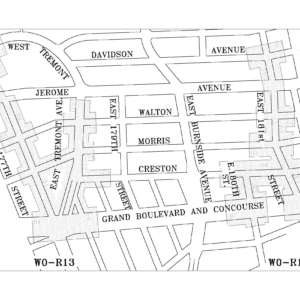

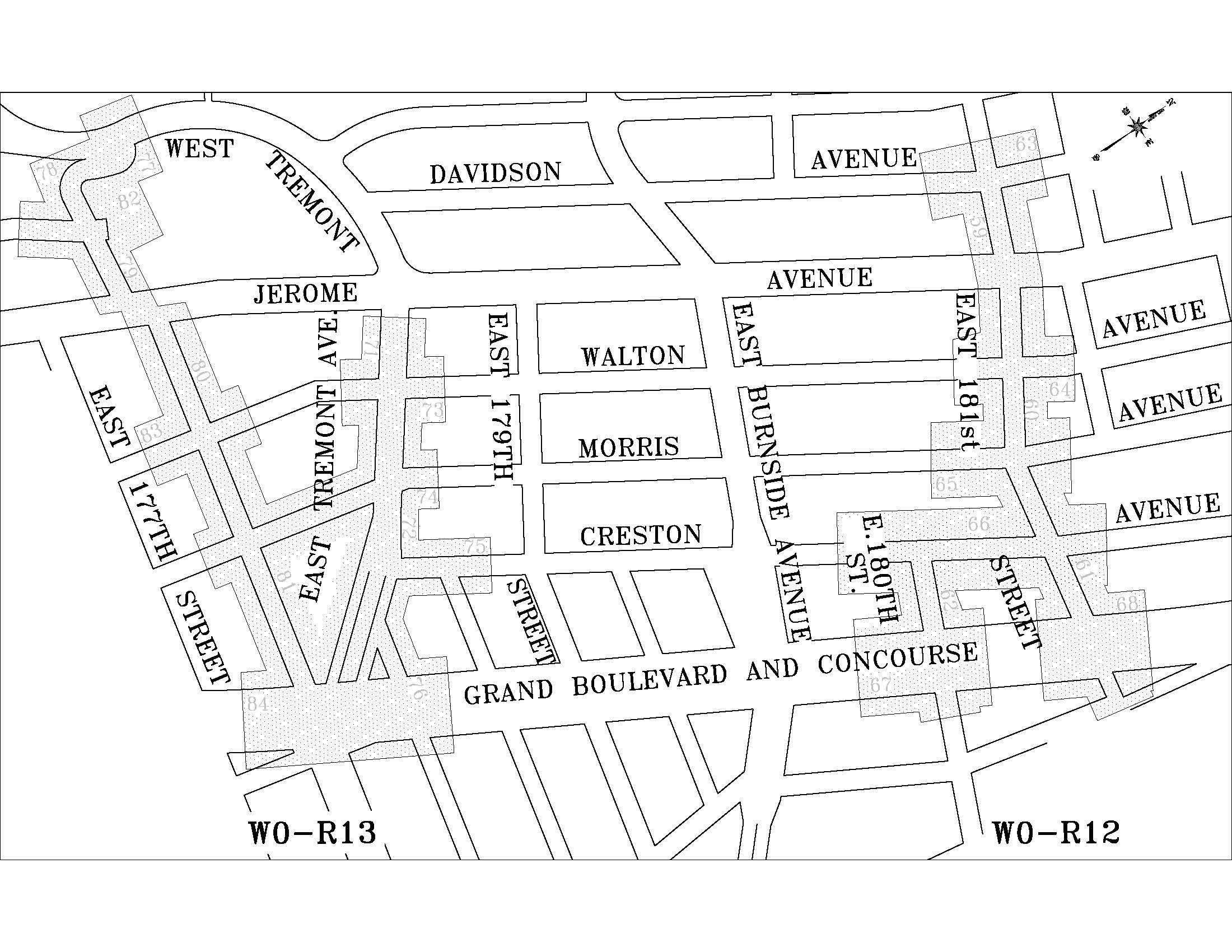

CADD: Key Plans and Control Drawings

Contract Cost: $76,700

Status: Completed 2022

Point of contact: Jonathan Ricablanca

Phone: 732-704-5400

Email:jonathan.ricablanca@colliersengineering.com
